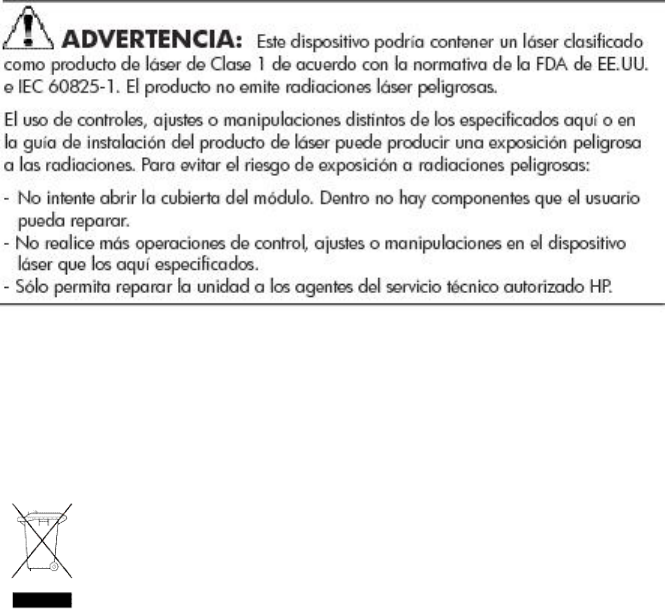

Spanish laser notice

Recycling notices

English recycling notice

Disposal of waste equipment by users in private household in the European Union

This symbol means do not dispose of your product with your other household waste. Instead, you should

protect human health and the environment by handing over your waste equipment to a designated

collection point for the recycling of waste electrical and electronic equipment. For more information,

please contact your household waste disposal service

Recycling notices 91
