Table 14 Controller chassis (continued)

DescriptionItem

.MaxMinName

data will not be lost and will remain protected on the Cache

Backup Memory Solid States Disk drive.

200–220 VAC input. Provides power to the DKC in a

redundant configuration to prevent system failure. Up to four

42AC-DC power

supply

power supplies can be used as needed to provide power

to additional components.

Each fan unit contains two fans to ensure adequate cooling

in case one of the fans fails.

1010Cooling fan

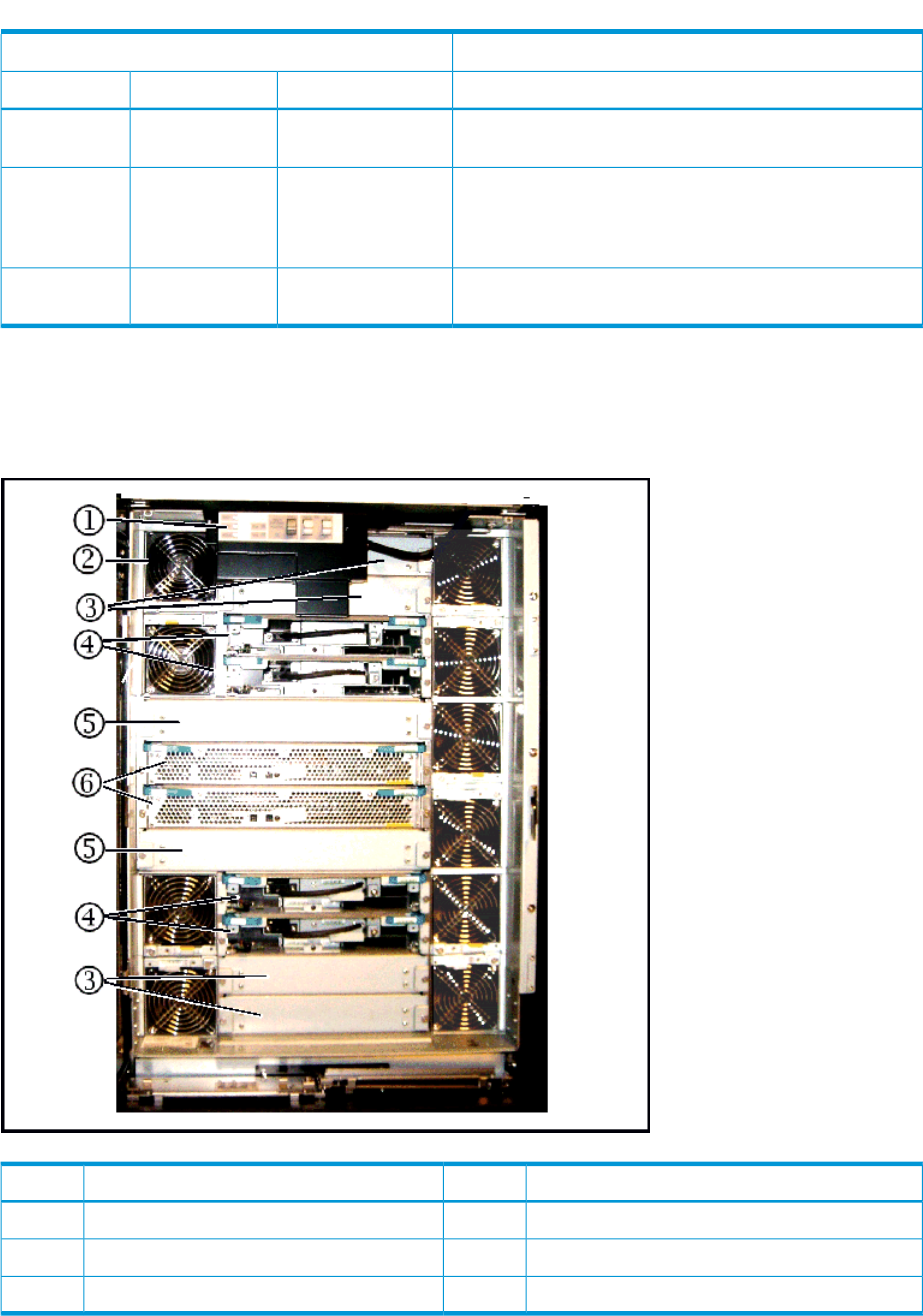

The following illustrations show the front and rear views of a controller chassis that is configured

with the minimum number of components. The system control panel (#1 in the front view) is described

in the next section.

Figure 11 Controller chassis front view (minimum configuration)

DescriptionItemDescriptionItem

Fan (10 total)2Control Panel1

Cache Memory Adapter4Slots for optional Cache Memory Adapter.3

Processor blades6Slots for additional Processor blades5

Controller chassis 55
