Ref Number Description Part No.

1 Lens T05530 (Green)

T05531 (Clear)

T05532 (Red)

T05533 (Blue)

T05534 (Amber)

2 OsciLaser

TM

Assembly S50031

3 Housing T03759

Gasket T06512

4 Trim Bezel T06511

5 Lamp T01540 (50 watt halogenOsram 64170 AX)

Parts Not Shown

6 Mounting Kit S70011

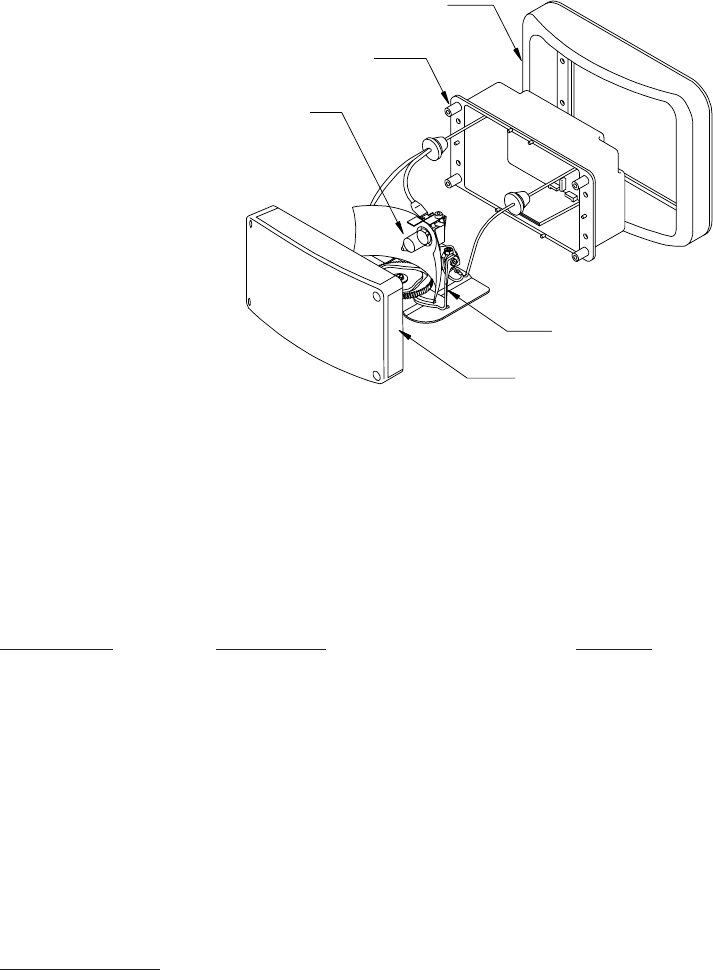

Parts & Exploded Views

4

3

5

2

1

FIGURE 7

6
