Flash Pattern Description

Cycle Flash Cycles through various patterns @ 70 fpm

Steady-Burn Steady-Burn

Five Flash Five Pulses per flash @ 70 fpm

Quad Flash Four Pulses per flash @ 70 fpm

Triple Flash Three Pulses per flash @ 70 fpm

Double Flash Two Pulses per flash @ 70 fpm

Fast Double Flash Two Pulses per flash @ 85 fpm

NFPA Four Pulses, 70% Duty Cycle @ 75 fpm

Quad Pop Flash Four Pulses per flash ( 3 equal, 1 extended) @ 70 fpm

Triple Pop Flash Three Pulses per flash ( 2 equal, 1 extended) @ 70 fpm

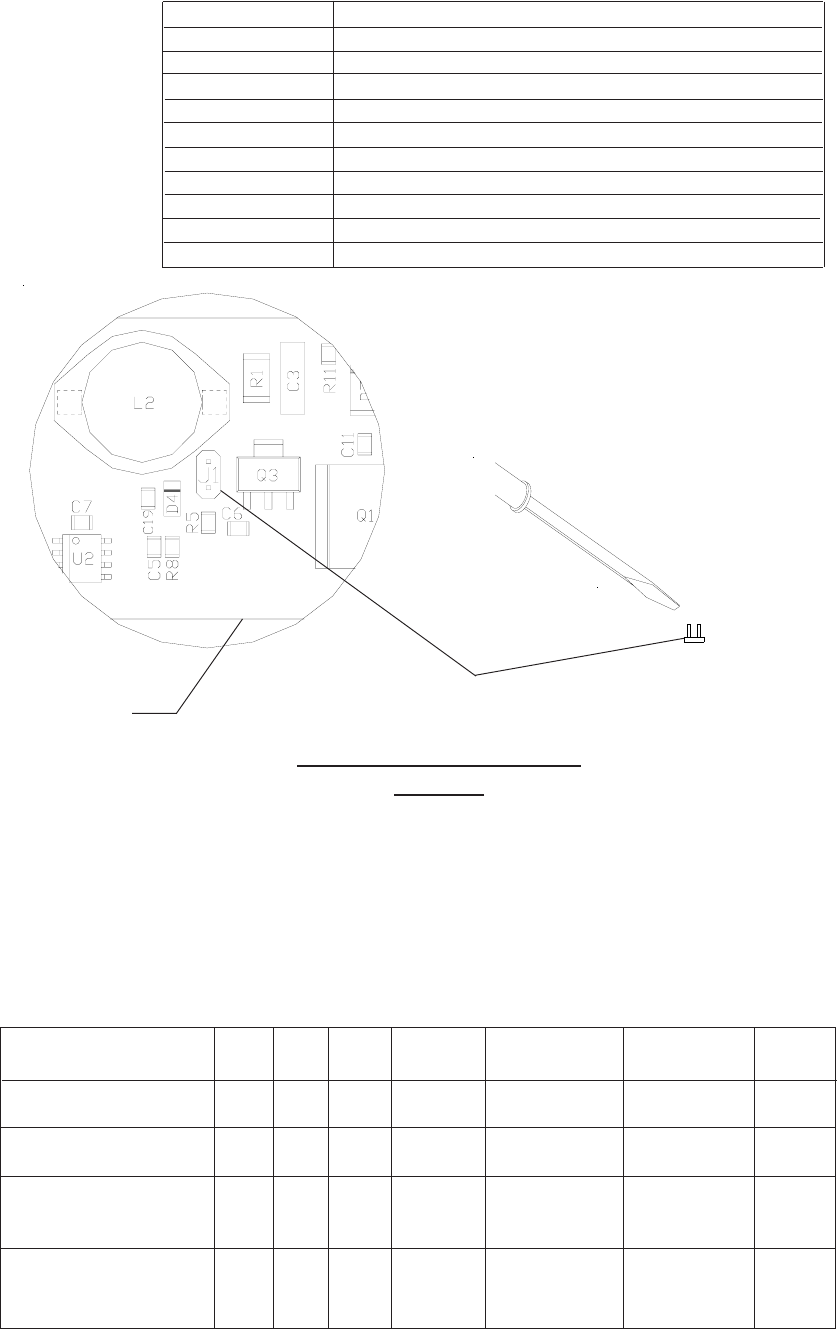

Flash Pattern Header for LEDX

FIGURE 3

PCB

Momentarily short and release

to change patterns

Options & Specifications

(Currents are calculated at 12.8 volts)

MODEL H L D WEIGHT OPERATING CURRENT FLASH

VOLTAGE DRAW RATE

LX3F-XXX - 3 Head 1.75" 13.8" 2.75" 2.0 lbs 10-16Vdc .6A avg 70 fpm

L.E.D. warning system min

LX2F-XX - 2 Head 1.75" 9.3" 2.75" 1.3 lbs 10-16Vdc .6A avg 70 fpm

L.E.D. warning system min

LX1F-X - 1 Head 1.75" 4.8" 2.75" 1 lbs 10-16Vdc Blue-.4A avg 70 fpm

L.E.D. warning system Red/Amber- min

.25A avg

LX1SB-X - 1Head 1.75" 4.8" 2.75" 1 lbs 10-16Vdc Blue-.8A avg

L.E.D. warning system Red/Amber- NA

.5A avg

1 2 3 4 5 6 7 8 9 10 11 12
